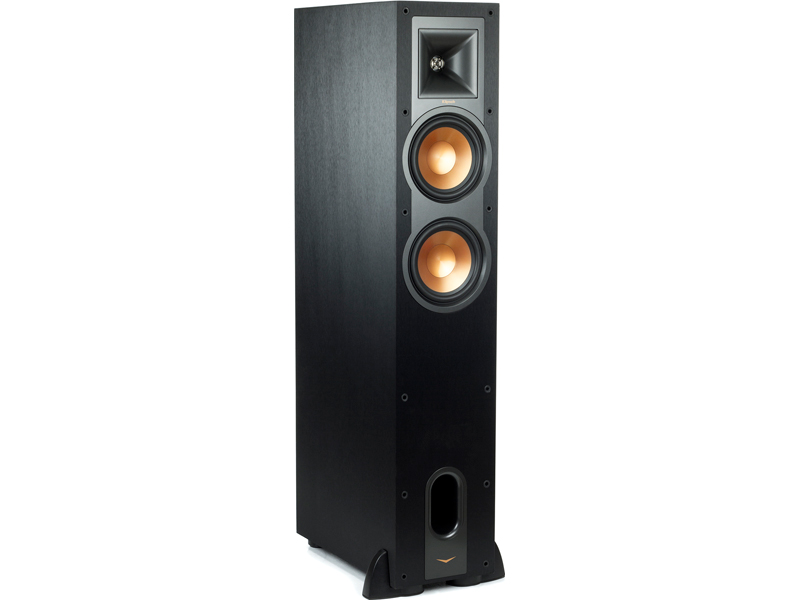

Klipsch R-26FA

Description

Built with an elevation channel integrated into the top, the Klipsch R-26FA Dolby Atmos® floorstanding speaker not only delivers stereo sound towards the listener, but also reflects sound off the ceiling to deliver the immersive, overhead Dolby Atmos® experience. Klipsch signature controlled directivity and high-performance have been an integral part of Klipsch acoustic design principals for the better part of a century – which is why the Klipsch R-26FA is the preferred speaker for this cutting-edge soundstage.

Features:

  • Built-in Elevation Channel for Dolby Atmos®
  • 1″ Aluminum Diaphragm Compression Tweeter
  • Dual 6.5″ Copper Spun Magnetically Shielded IMG Woofers
  • 90×90 Square Tractrix Horn
  • Front-Firing Port
  • Strong, Flexible Removable Grille
  • Dimensions: 39” x 7.8” x 16.25”

TAKE YOUR MOVIES AND MUSIC TO NEW HEIGHTS

Our proprietary speaker technologies are ideal for delivering the most
immersive, impactful 360° Dolby Atmos® listening experience as in the Klipsch R-26FA. Controlled directivity and high-performance have been an integral part of Klipsch acoustic design principals for the better part of a century.

90×90 TRACTRIX HORN

Our exclusive Tractrix® Horn technology and aluminum tweeters deliver the most impressive high-end response and greater extension, enhanced imaging and powerful dynamics. This creates the cleanest, most natural sound possible.

LINEAR TRAVEL SUSPENSION (LTS) TWEETER

A Linear Travel Suspension minimizes distortion for enhanced, detailed
performance. LTS Tweeters have been a hallmark of previous Reference
lines, as well as our flagship Klipsch Palladium series, making it a core
component of some of the best speakers in the world.

SPUN COPPER IMG WOOFERS

Injection Molded Graphite (IMG) woofers are exceptionally light while
being extremely rigid–providing remarkable low frequency response,
with minimal cone breakup and distortion. When paired with the Tractrix
Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.

FRONT-FIRING PORT

Perfectly matched to the cabinet and woofers, the front placement design
creates ideal airflow with minimal distortion.

MDF CABINET WITH BRUSHED POLYMER VENEER FINISH

Contemporary aesthetic with absolute durability that results in a seamless
integration into any décor.

DUAL 5-WAY BINDING POSTS

Sturdy, versatile and high quality terminals that provide the benefits of
bi-wiring and bi-amping.

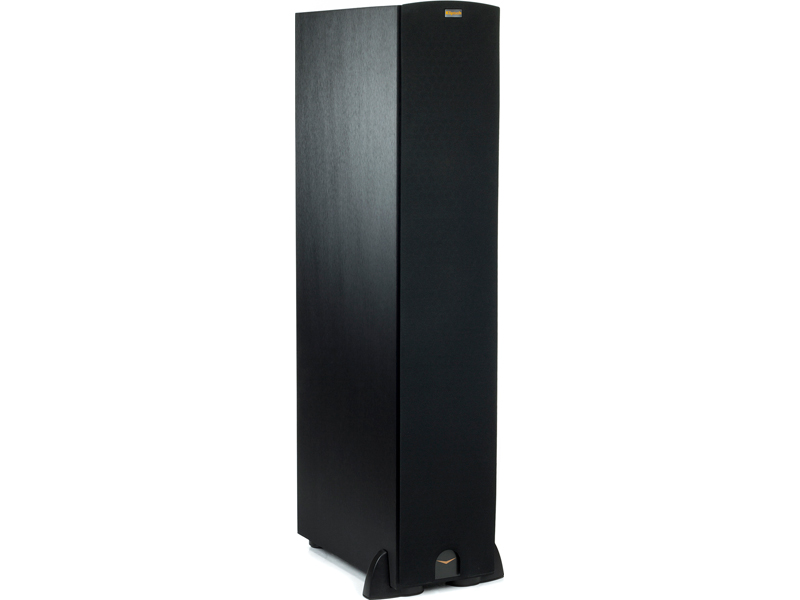

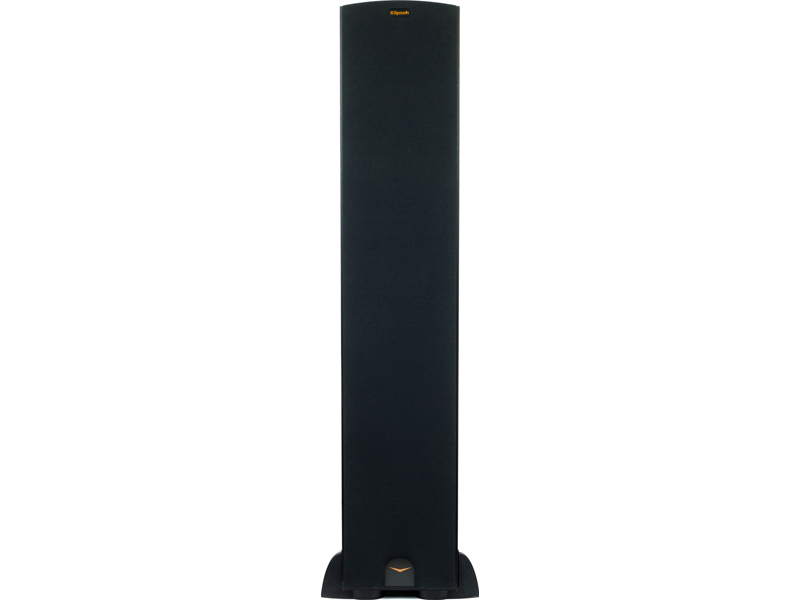

STRONG, FLEXIBLE, REMOVABLE GRILLE

Adds a rich, refined look that is acoustically transparent.

SPECIFICATIONS – MAIN CHANNEL :

FREQUENCY RESPONSE

38Hz – 24kHz +/- 3dB

SENSITIVITY

97dB @ 2.83V / 1m

POWER HANDLING (CONT/PEAK)

100W / 400W

NOMINAL IMPEDANCE

8 Ohms Compatible

CROSSOVER FREQUENCY

1800Hz

HIGH FREQUENCY DRIVER

1” (2.54cm) Aluminum diaphragm compression driver mated
to 90 ̊ x 90 ̊ square Tractrix
®
Horn

LOW FREQUENCY DRIVER

Dual 6.5” (16.5cm) copper spun magnetically shielded IMG Woofers

ENCLOSURE MATERIAL

MDF

ENCLOSURE TYPE

Bass-Reflex via front-firing port

INPUTS

Dual Binding Posts / Bi-wire / Bi-amp

HEIGHT

39″ (99.1 cm)

WIDTH

7.8″ (19.8 cm)

DEPTH

16.25″ (41.3 cm)

WEIGHT

52 lbs (23.6 kg)

FINISH

Brushed Black Polymer Veneer

BUILT FROM

2017

SPECIFICATIONS – HEIGHT CHANNEL :

FREQUENCY RESPONSE

Conforms to Dolby Atmos Specification

SENSITIVITY

Conforms to Dolby Atmos Specification

POWER HANDLING (CONT/PEAK)

75W / 150W

NOMINAL IMPEDANCE

8 Ohms Compatible

HIGH FREQUENCY DRIVER

1″ Aluminum LTS Tweeter with Hybrid Tractrix Horn

LOW FREQUENCY DRIVER

5.25″ Cerametallic Cone Woofer

ENCLOSURE MATERIAL

MDF

ENCLOSURE TYPE

Acoustic Suspension

INPUTS

Single Binding Posts
